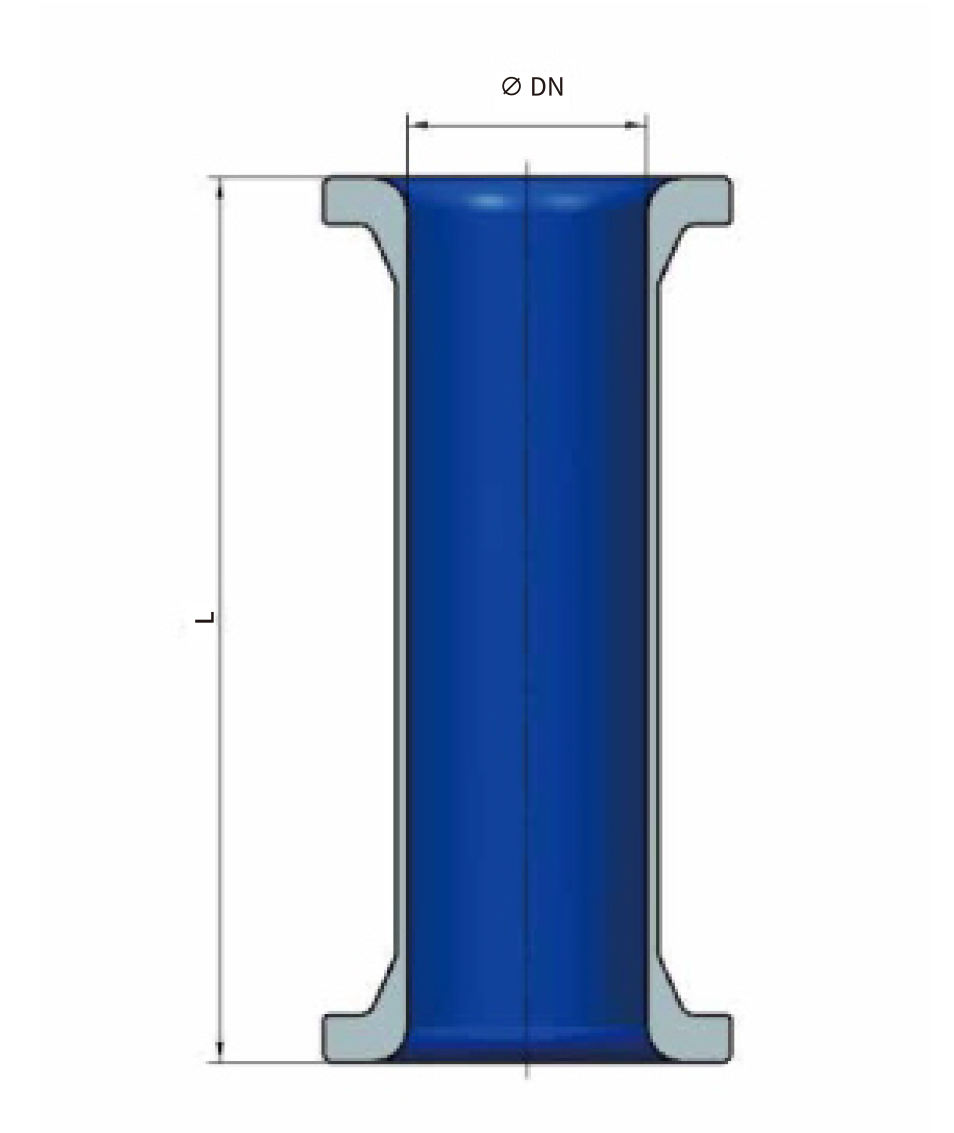

尺寸图
规格参数
| L | DN | |||||||||||||
| 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 400 | 500 | |
| 100 | 1.0 | 1.4 | 1.7 | 2.3 | 3.1 | 3.8 | - | - | - | - | - | - | - | - |
| 200 | 1.3 | 1.7 | 2.1 | 2.9 | 3.9 | 4.6 | 6.8 | 9.0 | 11.4 | 16.8 | 23.2 | 29.2 | 45.6 | 53.5 |
| 300 | 1.6 | 2.0 | 2.5 | 3.4 | 4.6 | 5.5 | 8.4 | 11.0 | 14.2 | 21.0 | 29.7 | 37.7 | 57.9 | 66.9 |
| 400 | 1.8 | 2.3 | 2.8 | 3.9 | 5.3 | 6.3 | 10.0 | 13.0 | 17.0 | 25.2 | 36.2 | 46.2 | 70.2 | 80.4 |
| 500 | 2.0 | 2.6 | 3.2 | 4.2 | 6.0 | 7.1 | 11.6 | 15.0 | 19.8 | 29.4 | 42.7 | 54.7 | 82.5 | 93.8 |
| 600 | 2.2 | 2.9 | 3.4 | 4.5 | 6.7 | 8.0 | 13.2 | 17.0 | 22.6 | 33.6 | 49.2 | 63.2 | 94.8 | 107.2 |
| 700 | 2.4 | 3.1 | 3.6 | 5.0 | 7.4 | 8.8 | 14.8 | 19.0 | 25.4 | 37.8 | 55.7 | 71.7 | 107.1 | 120.7 |
| 800 | 2.7 | 3.4 | 4.0 | 5.6 | 8.1 | 9.7 | 16.4 | 21.0 | 28.2 | 42.0 | 62.2 | 80.2 | 119.4 | 134.1 |
| 900 | 3.0 | 3.8 | 4.4 | 6.1 | 8.8 | 10.5 | 18.0 | 23.0 | 31.0 | 46.2 | 67.7 | 88.7 | 131.7 | 147.6 |
| 1000 | 3.2 | 4.1 | 4.8 | 6.7 | 9.5 | 11.3 | 19.6 | 25.0 | 33.8 | 50.4 | 74.2 | 97.2 | 144.0 | 161.0 |
| 1200 | 3.8 | 4.8 | 5.6 | 7.8 | 13.2 | 16.0 | 22.8 | 29.0 | 37.4 | 58.8 | 87.2 | 114.2 | 168.6 | 187.9 |
| 1500 | 4.6 | 5.8 | 6.8 | 9.4 | 16.1 | 19.4 | 27.6 | 35.0 | 45.8 | 71.4 | 106.7 | 139.7 | 205.5 | 228.2 |
| 1800 | 5.4 | 6.9 | 8.0 | 11.1 | 19.0 | 22.9 | 32.4 | 42.0 | 54.2 | 84.0 | 126.2 | 165.2 | 242.4 | 268.6 |
| 2000 | 5.9 | 7.5 | 8.7 | 12.2 | 20.9 | 25.1 | 35.7 | 46.3 | 59.8 | 92.4 | 139.2 | 182.2 | 267.0 | 395.5 |
| 2500 | - | - | - | 15.0 | 25.8 | 30.9 | 44.1 | 57.1 | 74.1 | 109.7 | 136.4 | 225.1 | 327.4 | 362.7 |
| 3000 | - | - | - | 17.7 | 30.6 | 36.6 | 52.5 | 67.8 | 88.2 | 130.4 | 201.8 | 267.7 | 388.6 | 429.9 |
